VD1000P

The VD1000P is a direct contact, capacitive type voltage detector for use on voltages from proximity to 99.9kV on distribution circuits and 999kV on Transmission conductors. The VD1000 indicates Line-to-Ground values.  (U-2)

Each unit has a five-position switch for the following functions:

OFF    Use this position for Storage and Transit

P     Non-Contact, Sensing Presence of Voltage from the Ground

URD    Direct Contact, Underground Primary (01.0 - 99.9)

OH     Direct Contact, Overhead Lines (01.0 – 99.9)

OHT    Direct Contact, Substation & Transmission Lines (001 – 999)

This unit incorporates a self-test feature each time the selector switch is turned to another position displaying the battery voltage. A reading less than 07.0 indicates a low battery.

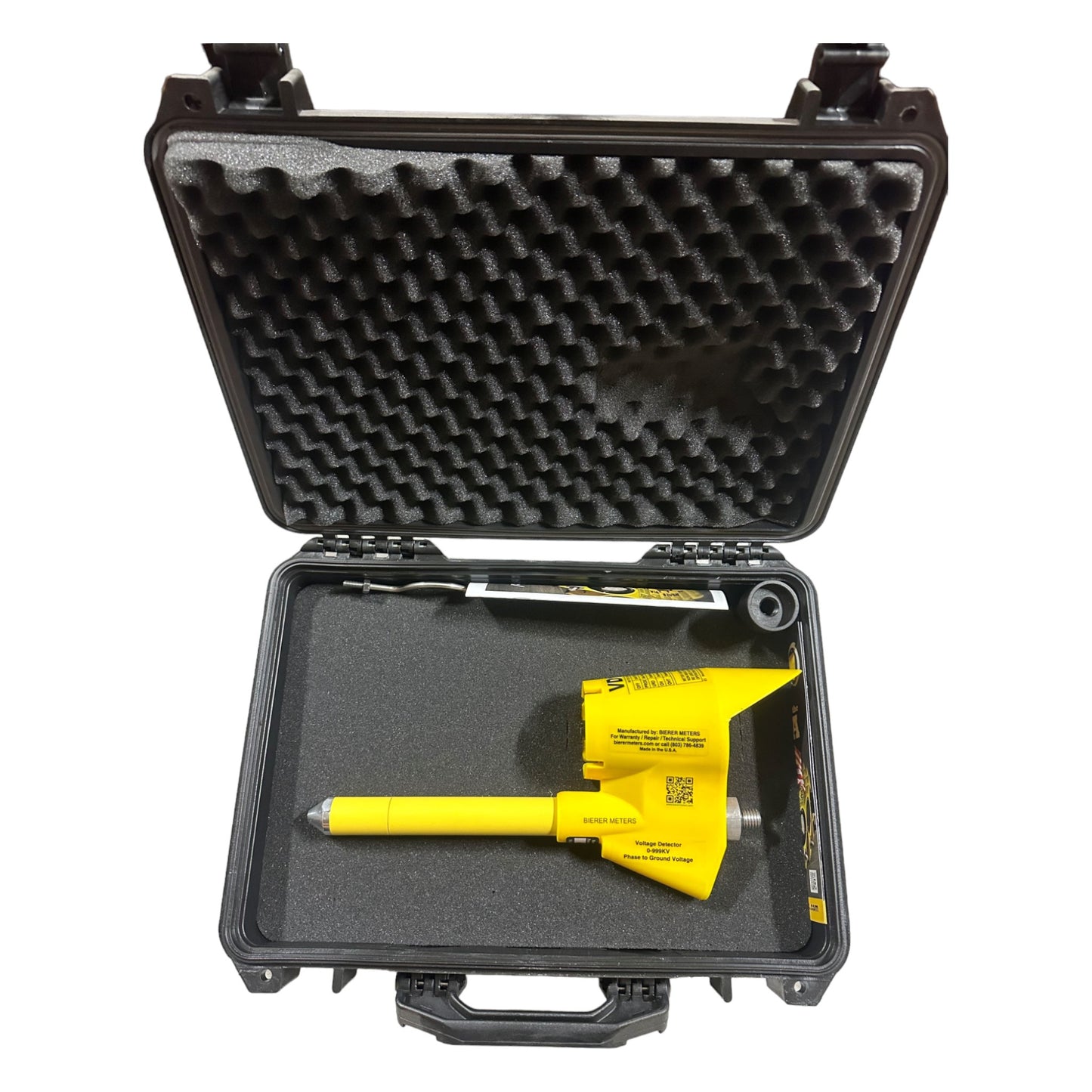

Includes:

• 1kV – 999kV digital voltage detector with proximity test
• Hook probe
• Straight probe
• Universal/grip-all adapter
• Manual
• Case
