TEH4802-1-C

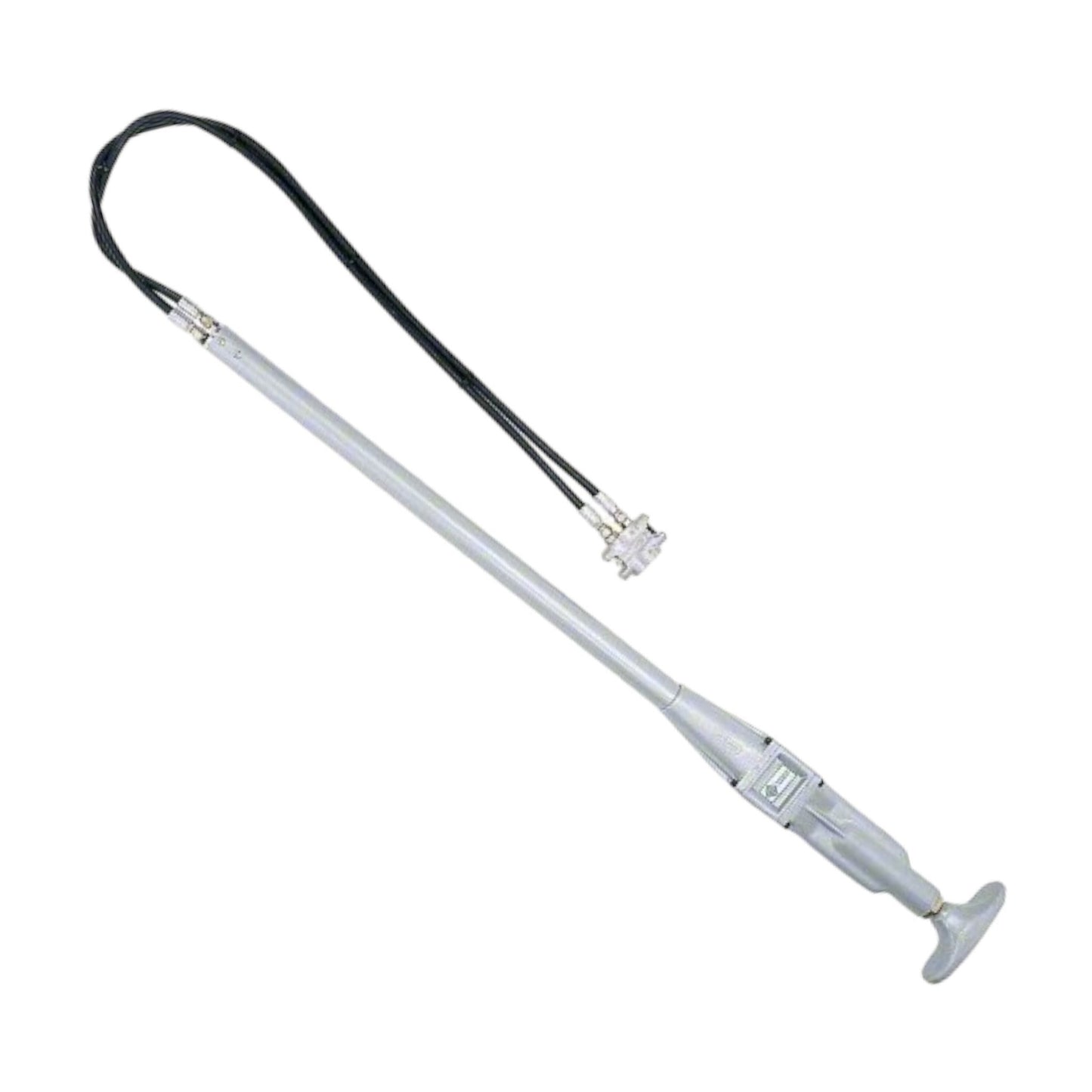

85" Pole Tamper, Hose End Valve

• Makes quick work of setting poles, asphalt patch, and general construction backfill compacting
• Only three moving parts for low-maintenance
• Kidney-shaped foot included
• Hose End Valve - Reversible on/off valve for Open and Closed-Center hydraulic systems
• Valve on Tube - Rotate trigger spool for Open and Closed-Center hydraulic systems

• Specifications

  Accessory	111964K Kidney-Shaped Foot
  Accessory	54923 HTMA Male Coupler
  Accessory	54924 HTMA Female Coupler
  Accessory	56295 56 IN Abrasion Resistant Hose Set w/nylon sleeve and tool end strain reliefs
  Blow Frequency	1160 MINT At 5 GPM (19 LPM)
  Flow Range	4 - 6 GPM (15 - 23 LPM)
  Includes	Kidney-Shaped Foot
  Length	85.000 IN
  Operating Pressure	1000 - 2000 PSI (69 - 138 BAR)
  Pressure Port	9/16 - 18 SAE O-Ring
  Replacement Part	56296 56 IN Hose Set for Remote Valve Tampers w/tool end strain reliefs, 111952 Remote Valve
  Return Port	3/4 - 16 SAE O-Ring
  Standard Foot Size	2.500 X 8.000 IN (63.000 X 203.000 MM)
  System	Open and Closed Center System
  Valve Location	Hose End
