T6-1000PRO

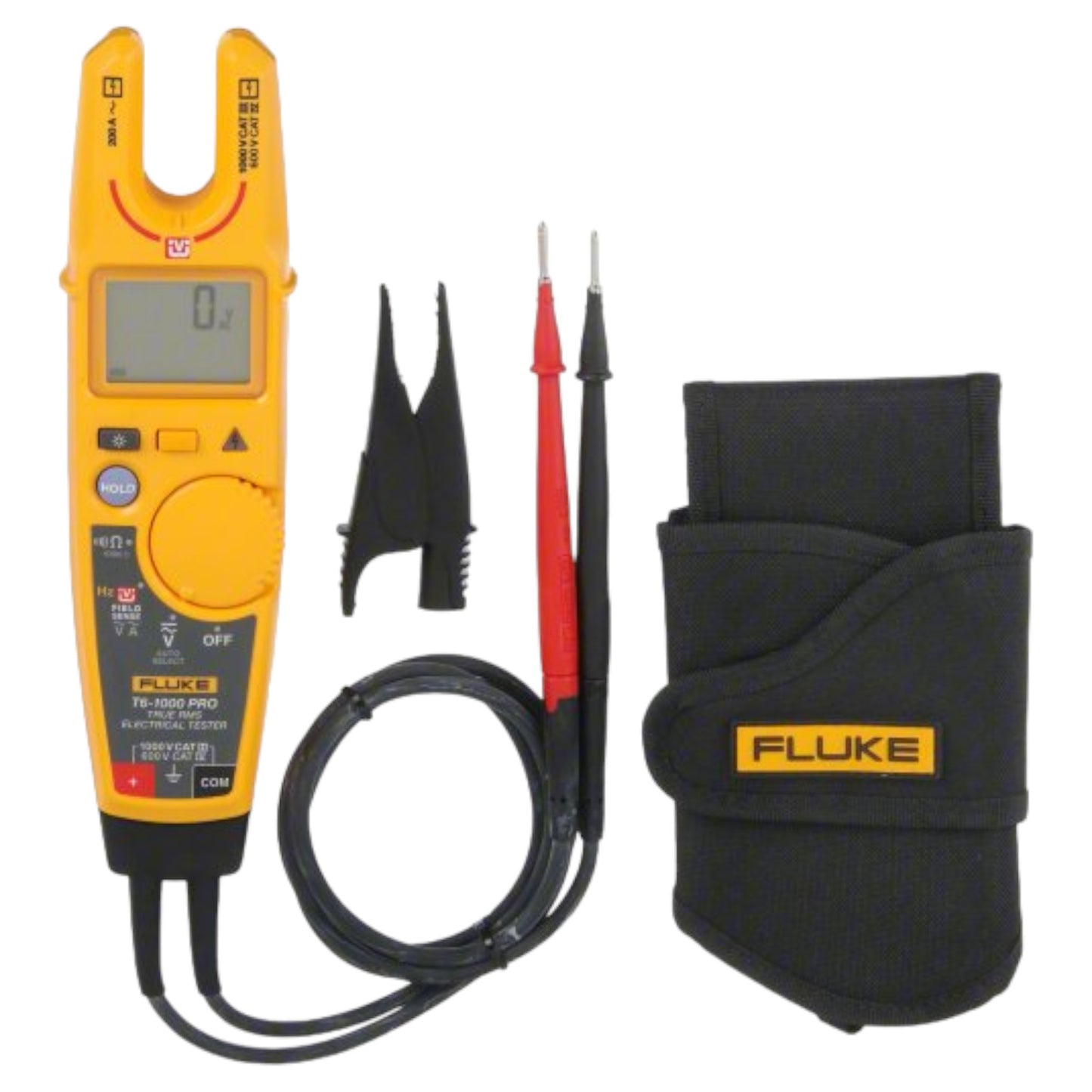

Fluke T6-1000 PRO Electrical Tester

The T6-1000 PRO Electrical Tester measures voltage up to 1000 V ac and current up to 200 A AC, all through the open fork and without test lead contact to live voltage. Connect the black lead to the ground with the included heavy-duty alligator clip, slide the wire into the open fork, and see both voltage and current at the same time. On wires up to AWG 4/0 (120 mm²), carrying as much as 200 A and 1000 V ac. Even with gloves on. It will change how you do your job.

Key functions

• Simultaneous voltage and current display–save time by seeing voltage and current measurements at the same time when troubleshooting motors, pumps, or other equipment
• Visual Continuity™–When checking continuity, the screen automatically turns green while the beeper is on. Perfect for those times when it’s too loud to hear the beeper, when you’re wearing ear protection, or when it’s too dark to easily read the screen. Visual Continuity takes the guesswork out of checking continuity.
• True-rms – Accurate voltage and current measurements, even when measuring complex signals.
• FieldSense™ technology for AC voltage, current, and frequency measurement without making electrical contact with live voltage

Other capabilities

• 1 to 1000 V ac or dc
• 0.1 to 200 A ac
• Resistance 1 Ω to 100 kΩ
• Frequency measurement 45 Hz to 66 Hz through open fork
• Works with most wire up to AWG 4/0 (17.8 mm/0.7” jaw opening)
• The HOLD button temporarily freezes the screen for easy viewing
• Easy-to-read display with backlight
• Accepts optional Fluke TPAK Magnetic Meter Hanger for convenient operation
• Standard two-year warranty; extendable to 4 years through product registration within 45 days of purchase *
