Hubbell Power Systems Inc
T4000870
T4000870
Regular price
$600.44 USD
Regular price
Sale price
$600.44 USD
Unit price
/
per
Couldn't load pickup availability

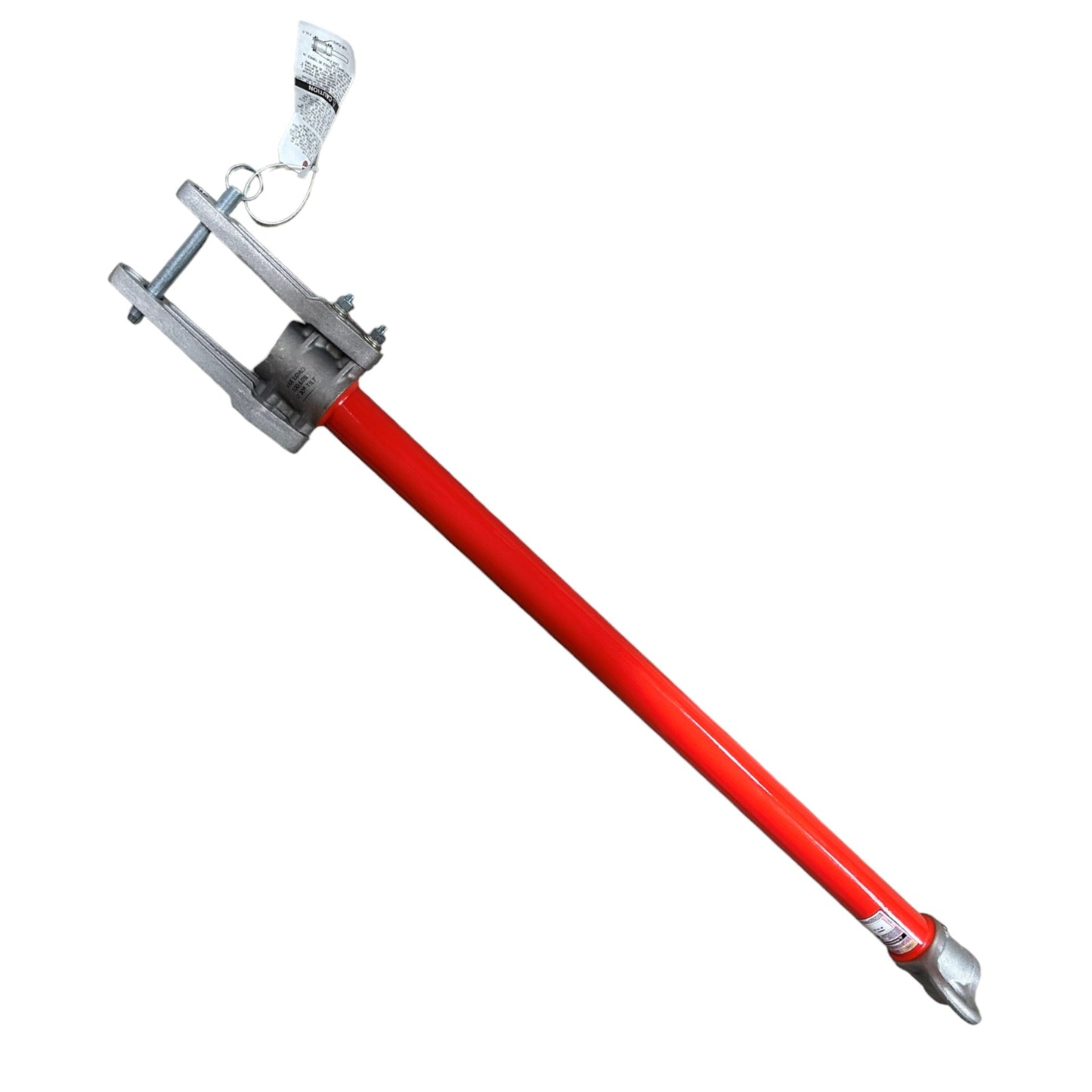

Cross Arm Gin, 56" (E-4)
CROSS ARM GIN-56IN - 3.5X4.5 - 4.75-5.75, Yoke casting fits over distribution crossarms, so this Crossarm Gin can be used with rope blocks or handline to lift conductors from their insulators. A removable cadmium-plated steel pin provides adjustment for the crossarm from 3.5" x 4.5" up to 4.75" x 5.75". At a 30˚ maximum angle from vertical, the 44" gin has a rated working load including pull force of 750 lb.- 56" gin, 500 lb. Gins are not intended for applications involving side pull on either hoist line or load line. Lines to be within 5˚ of vertical.
- Yoke casting fits over distribution crossarms, allowing the gin to be used with rope blocks
- Can also be used with rope blocks or handline to lift conductors from their insulators
- Removable cadmium-plated steel pin provides adjustment for crossarm from 3-1/2” x 4-1/2” up to 4-3/4” x 5-3/4”
- Convertible model fits up to 6” x 6” crossarm
- At 30° maximum angle from vertical, 44” gin has rated working load including pull force of 750 lbs
- 500 lb. 56" gins are not intended for side-pull applications on hoist line or load line
- Lines to be within 5° of vertical
