C6001743

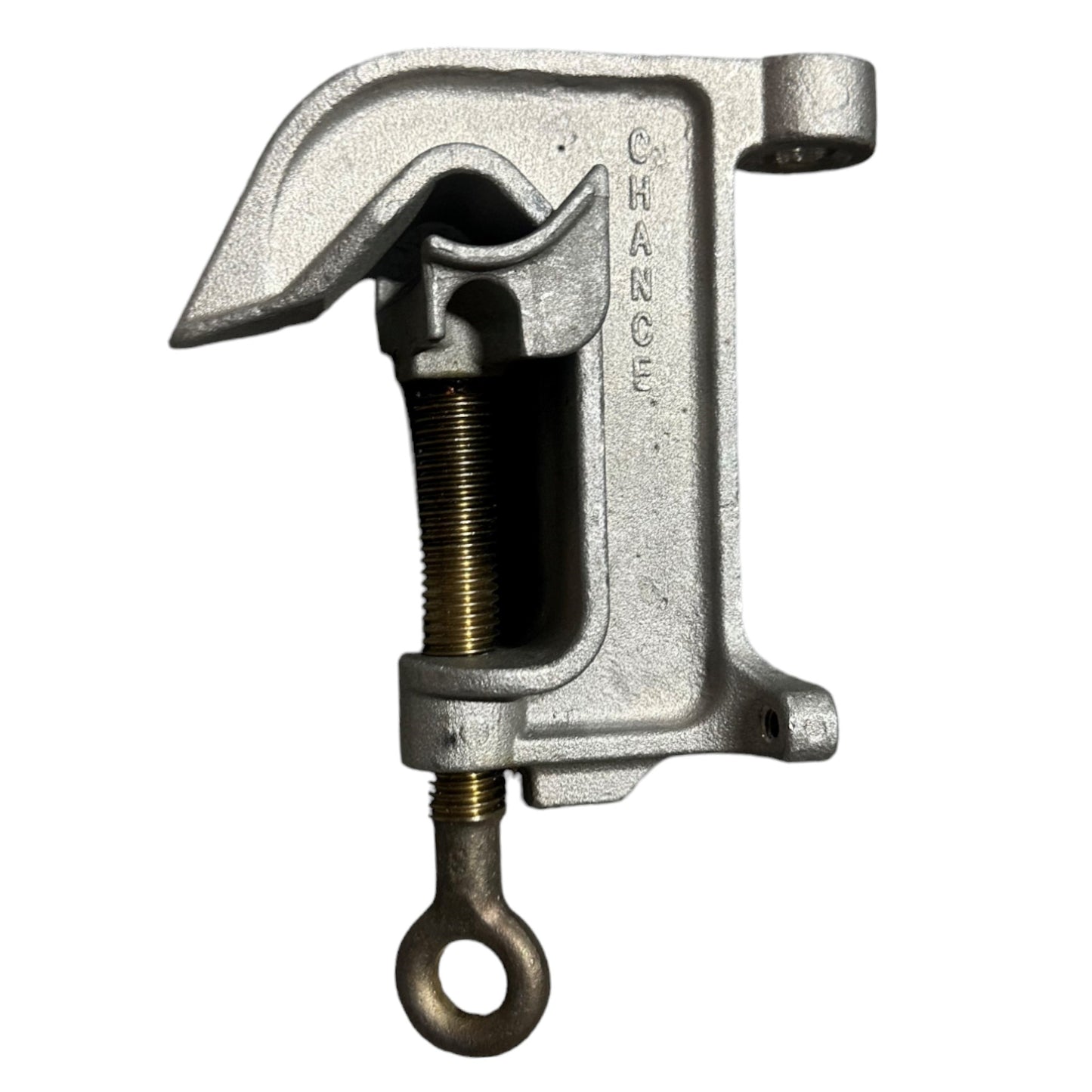

Ground Clamp, C-Type, Type I-Class A-Grade 5H, 1.50" Jaw Opening (M-2)

• C-Type Ground Clamp
• Continuous Current 400A
• Fault Current 47kA, X/R=30
• Main Line Range Max. 1000kcmil CU or 1590kcmil ACSR (1.50")
• Main Line Range Min. #6 Sol. CU (0.162")
• Jumper Range Max. 4/0 Ground Cable
• Jumper Range Min. #2 Ground Cable
• ASTM Type I, Class A, Grade 5H
• Jaws Smooth
• Ferrule Threaded
