C6000197

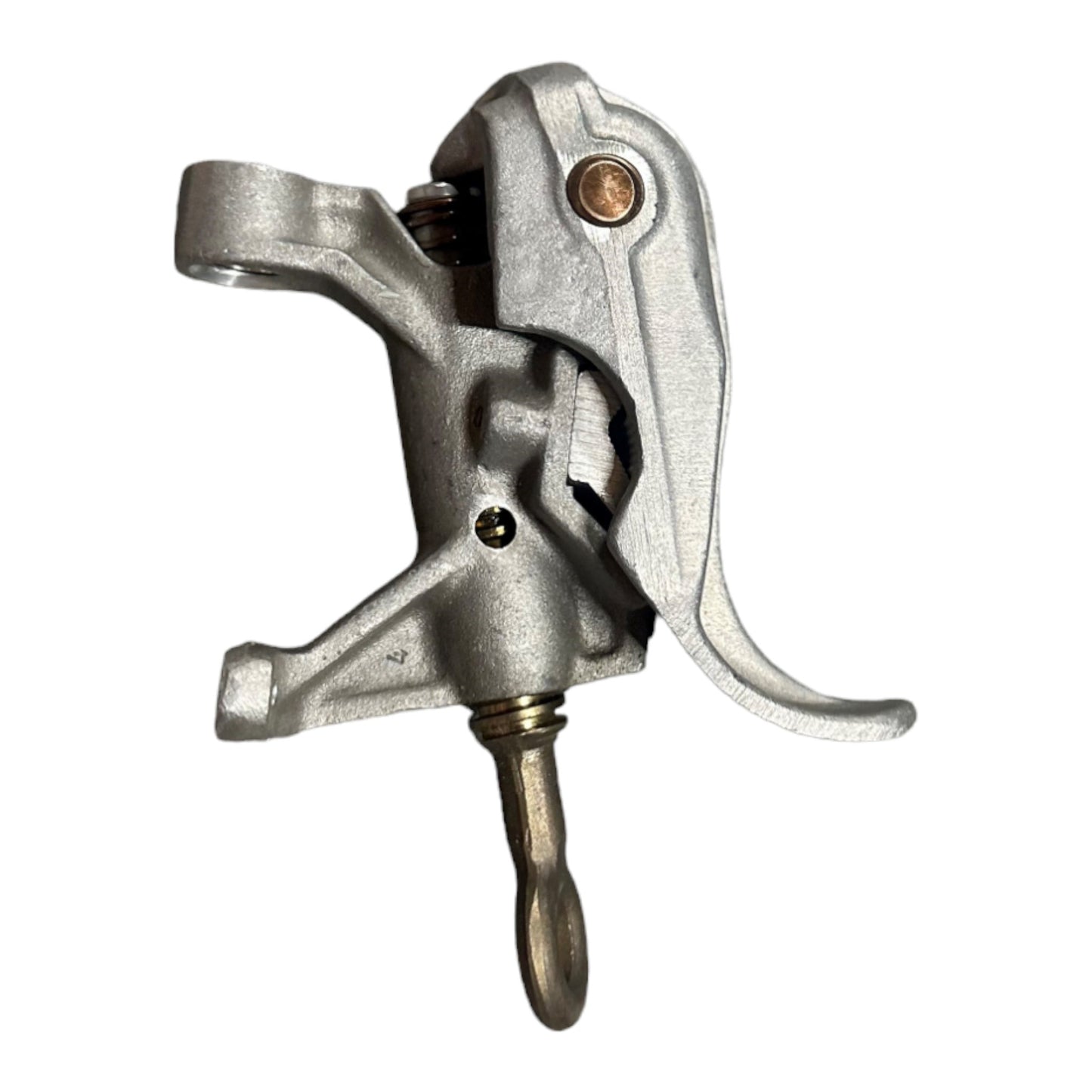

Duckbill Ground Clamp, Type I-Class B-Grade 5H, 1.293" Jaw Opening (M-4)

• Duckbill Ground Clamp
• Continuous Current 400A
• Fault Current 47kA for 15 cycles X/R=30
• Main Line Range Max. 700kcmil CU or 1113kcmil ACSR (1.293")
• Main Line Range Min. #6 Sol. CU (0.162")
• Jumper Range Max. 4/0 Ground Cable
• Jumper Range Min. #2 Ground Cable
• ASTM Type I, Class B, Grade 5H
• IEC Rating 35kA (15 cycles)
• Jaws Serrated
• Ferrule Threaded
