Hubbell Power Systems Inc
C4033409
C4033409
Regular price
$373.75 USD
Regular price
Sale price
$373.75 USD
Unit price
/
per
Couldn't load pickup availability

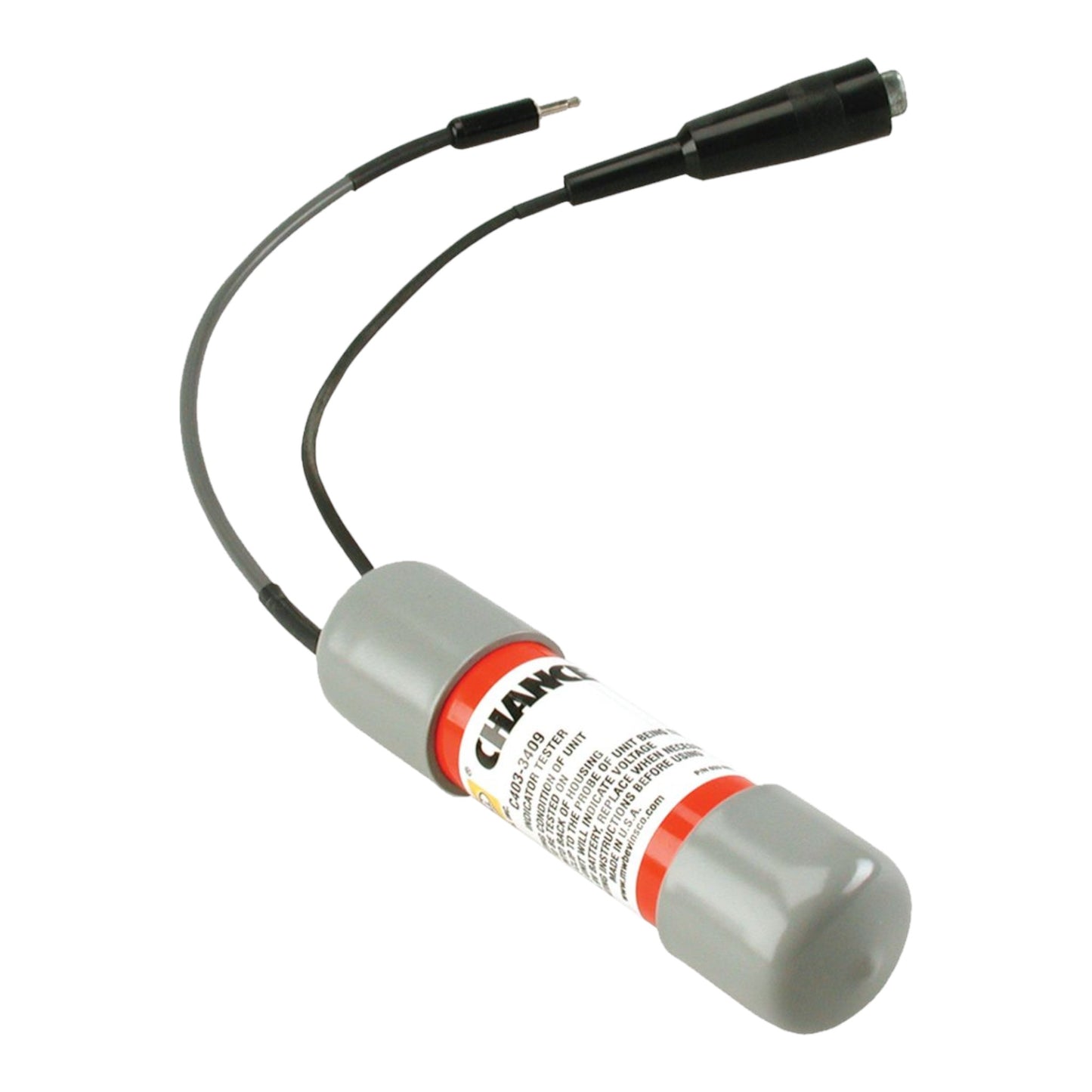

Voltage Indicator Tester, 600V - 69kV
Voltage Indicator Tester for the C4033374 ARVI 600V-69kV only.
- Makes hot-line voltage testing easier than ever
- State-of-the-art electronics eliminate the need for a selector switch
- Automatic-ranging function quickly displays approximate phase-to-phase voltage class
- Provides easy, yet reliable means for the operator to determine if a line is: De-energized, or Carrying less than normal system voltage from any source or induced voltage from an adjacent live circuit, or Energized at full system voltage
- Simple-to-operate tester attaches to an Epoxiglas ™ insulating universal handle of appropriate length to maintain proper OSHA working clearances
- A single push button activates the instrument, and then a single light indicates either Power On (by glowing solid) or Low Battery (by blinking)
- With good battery condition, the instrument performs a confirming self-test
- It does this by illuminating each of the six indicator lights in series while emitting an alternating audible signal
- Then the probe can be brought into contact with the conductor
- It automatically begins detecting at approximately 480 Volts and holds a display of one of these voltage classes: 600 V, 4 kV, 15 kV, 25 kV, 35 kV, or 69 kV phase-to-phase
- Audible signal begins as a slow beeping, becoming faster as the final reading is displayed
- When not in use, the unit’s energy-saving Sleep mode automatically conserves battery
- For overhead testing, a Shepherd Hook probe is included with the Basic ARVI (Auto-Ranging Voltage Indicator)
- For underground testing, Elbow Adapter T4030856 and Bushing Adapter T4030857 are included
- They simply thread onto the ARVI in the field to check for voltage at switch bushings or elbows on cables, using a feed-thru device
