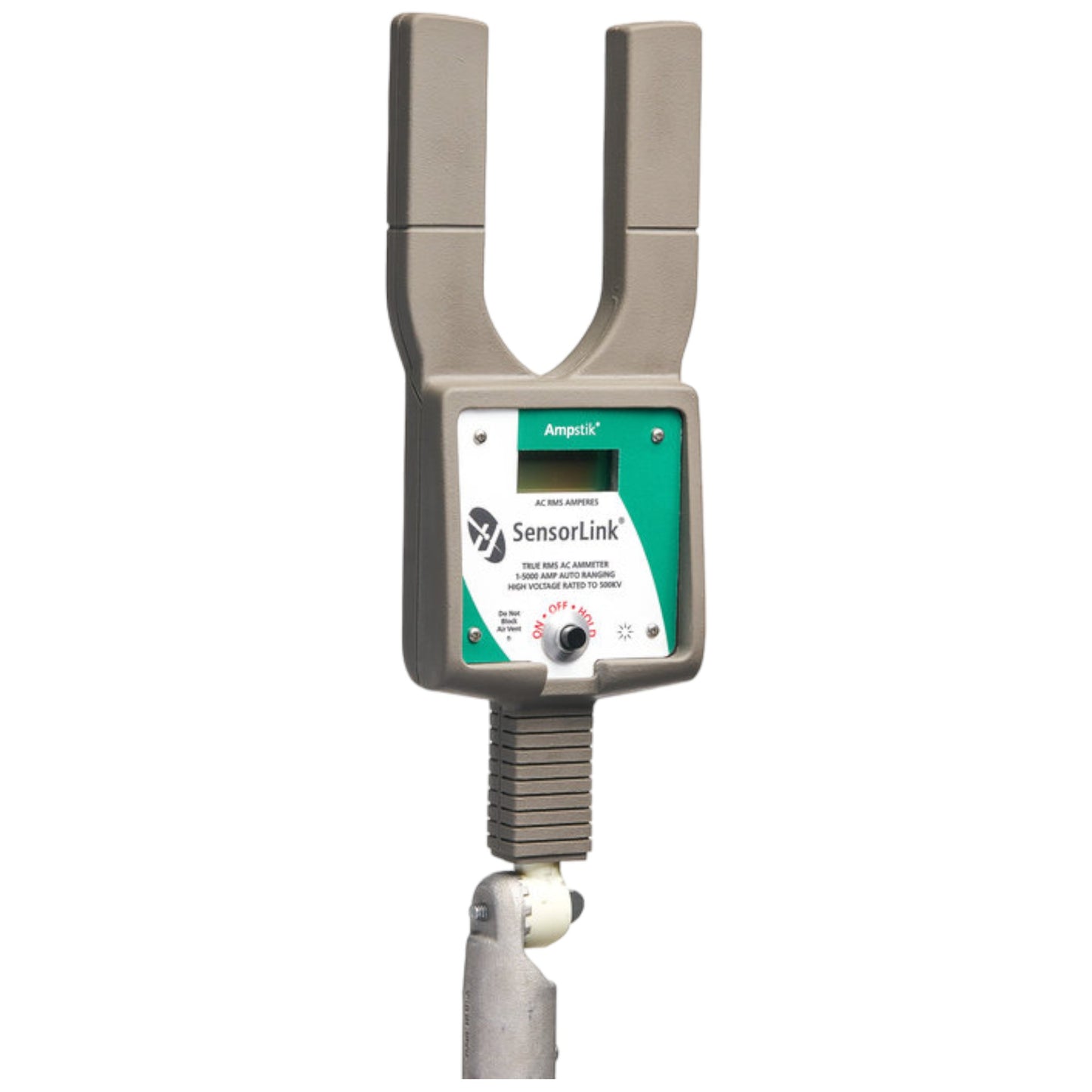

8-020XTPLUS

Amp Stick Plus (P-2)

Range of Operation
Voltage: 0-500kV
Current: 1-5000A

Sensor Opening: Standard
Opening Width: 2.5 in (6.35cm)

Resolution
Amps 1-99.9A: 0.1A
Amps 200-1999A: 1A
Amps 2000-5000A: 0.01 kA

Accuracy: ± 1% ± 2 counts

Operation
Frequency: 60 Hz (57 to 63 Hz) or 50 Hz (47 to 53 Hz) Models Available
Controls: One-button operation
Readings: Single Read

Mechanical
Weight: 2.5lbs (0.97 kg)
Operating Temperature: -22 to 140 degrees F (-30 to + 60 degrees C)
Display: 3.5 Digit Display
Housing: Shock & water resistant molded urethane
Hot stick mounting: Universal chuck adapter (Hot stick not included)
Battery: 9-volt alkaline
