5051

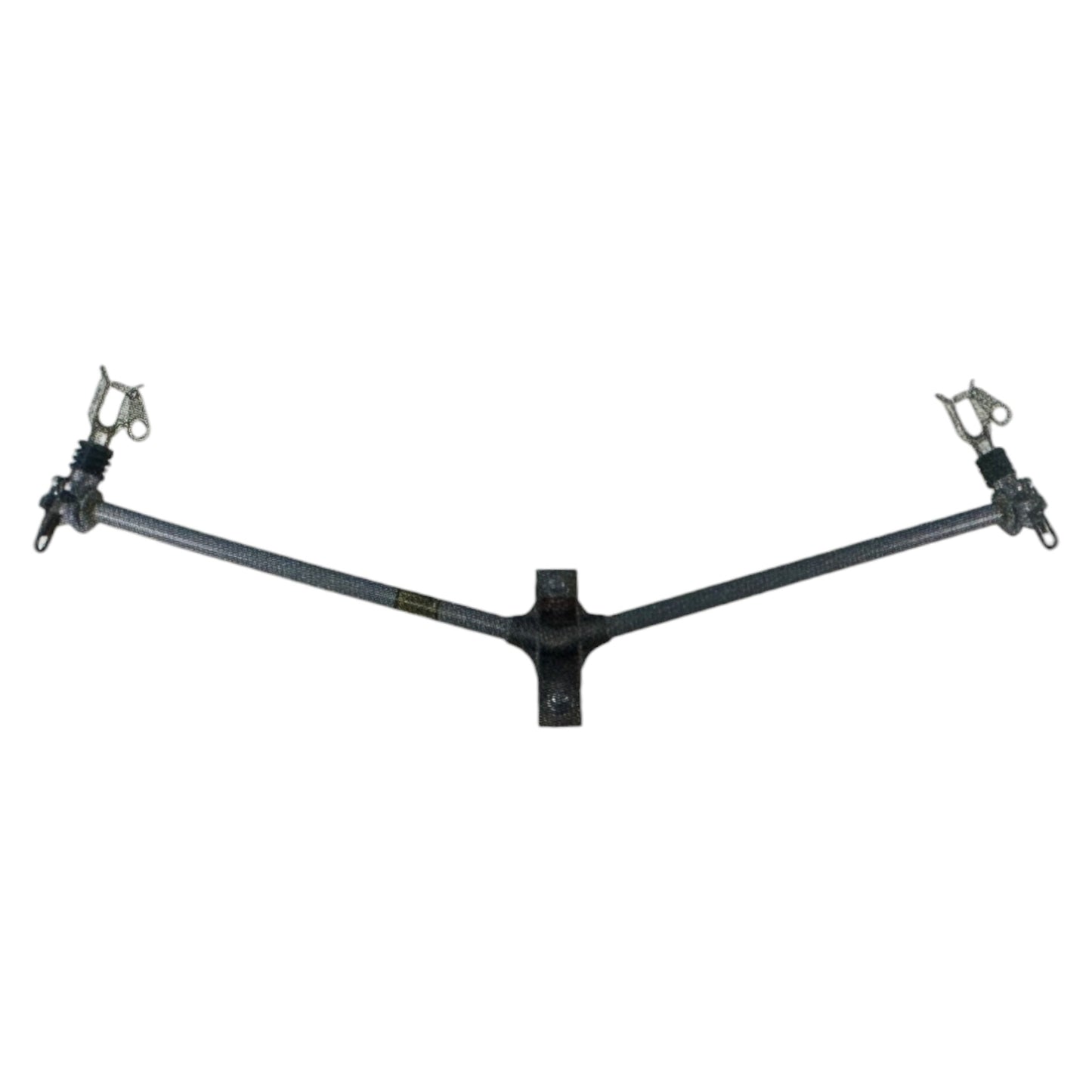

TEMPORARY CROSS ARM
• The Temporary Cross Arm is an excellent tool for changing cross arms. Solid fiberglass arms for maximum strength. Rated for 34.5KV phase to phase.
• Two-piece assembly makes installation easy and fast
• The mounting base includes a ratchet and strap assembly for lightweight and safety. The U-shape design fits over the pole top pin.
• Fiberglass arm includes two standard conductor holders A10002 with insulators and will accept conductors up to 1 1/16” O.D. Conductor latches are hot stick operable.
• Captive bolts and washers on the arm assembly enable the arm to be mounted to the base. No tools are required.
• Load limit is 150 pounds per side

72” WIDE, TWO A10002 STANDARD CONDUCTOR
HOLDERS, COMPLETE WITH MOUNTING BASE
