50062AD-4

                                                                                                                         (T-2)

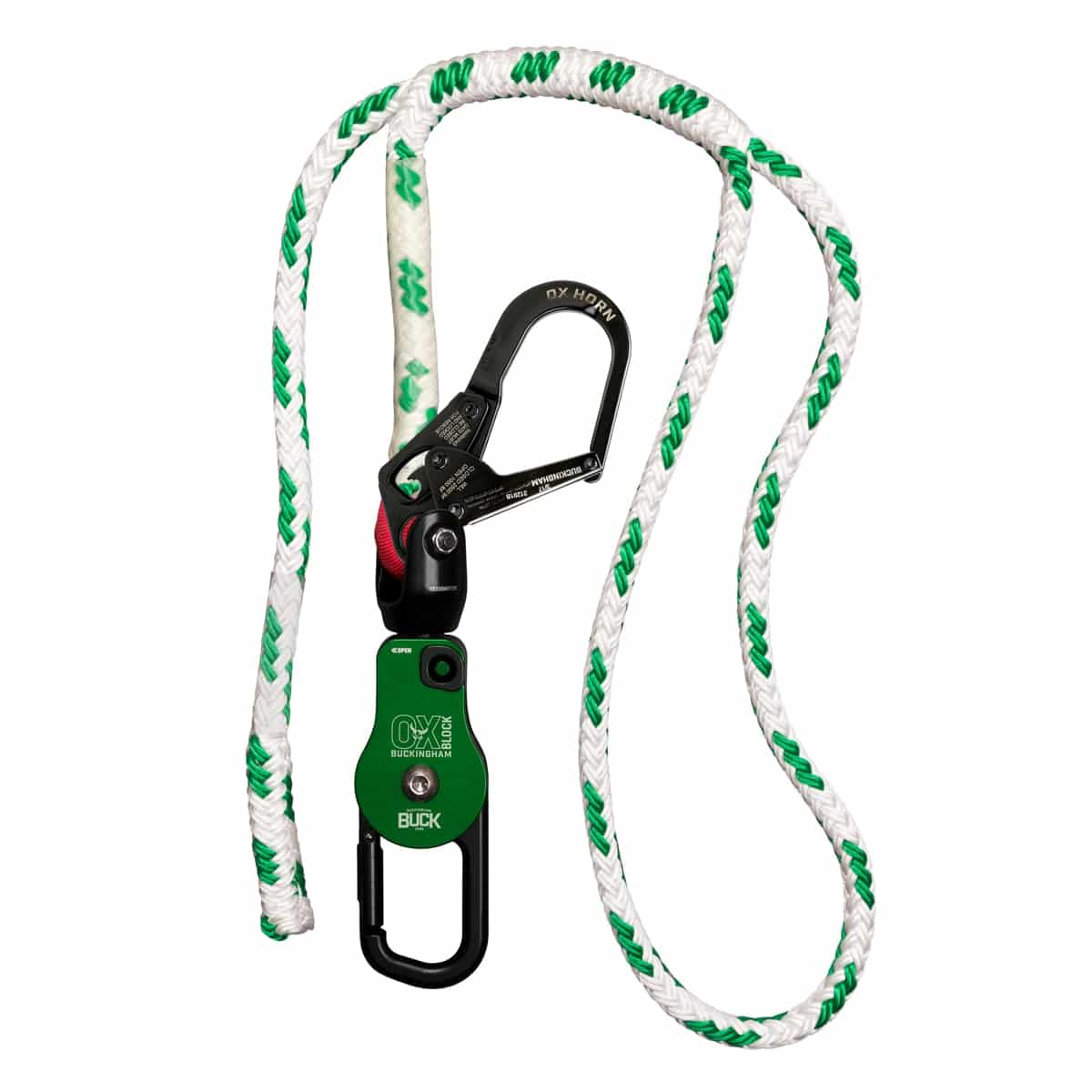

This new version of the OX BLOCK® features the OX HORN™ on the shackle top. With its 2” gate opening, it is designed to replace a non-rated “meat hook” currently in use by many linemen. It has a working load limit of 2500 pounds with the gate closed and a 1000-pound working load limit with the gate open.

This OX BLOCK® handline assembly, as a whole, can be used for hurtman rescue. All components used for rescue must have a 5000 lb. rating, configured to accept human support. For rigging, ensure the weak link has a 4 to 1 safety factor.

The OX BLOCK® is a rope snatch block with an integrated friction bar used for:

• Hurtman/self-rescue
• Lowering
• Raising
• Snubbing loads.
