11686

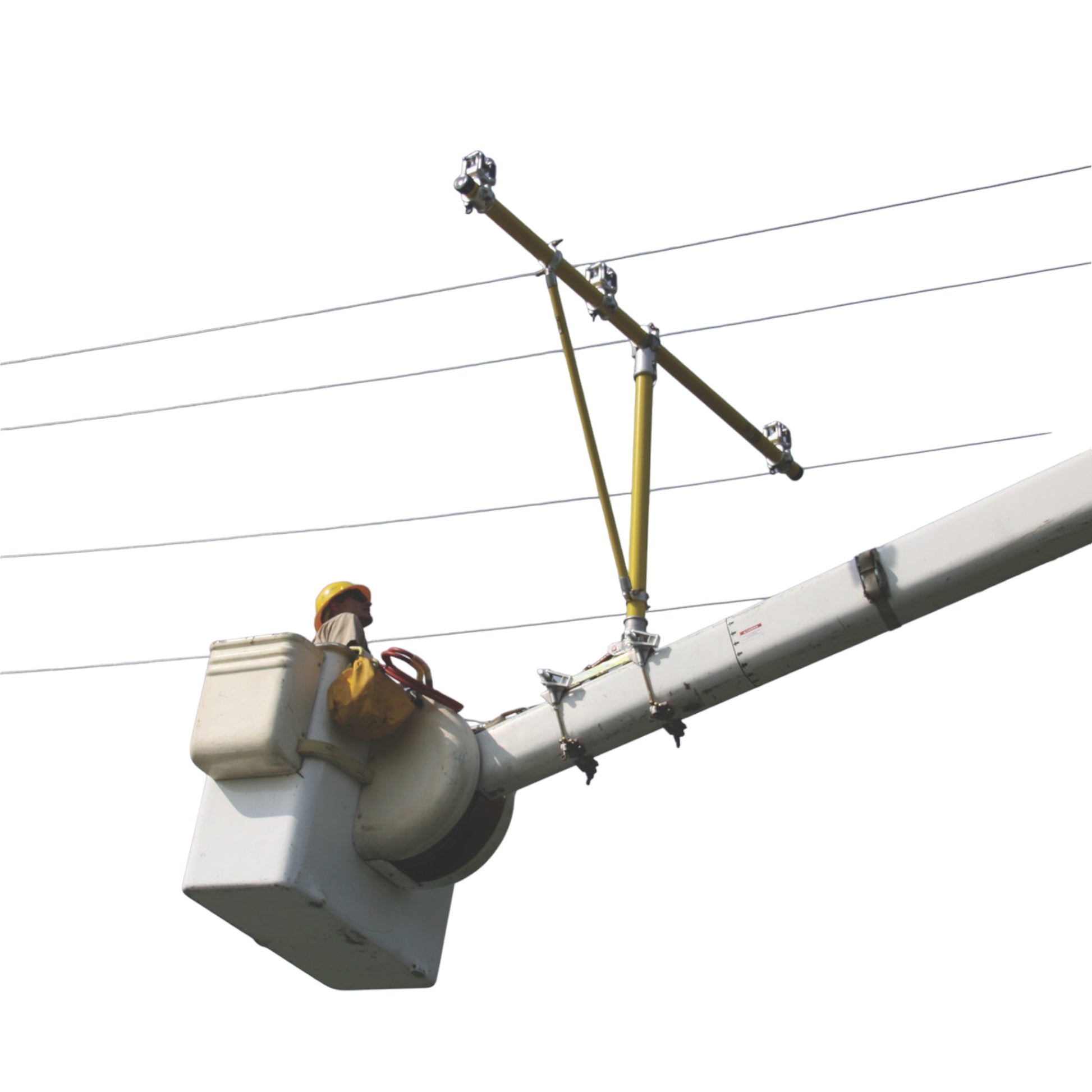

BOOM MOUNTED LIFT ARM (F-0)
• The boom mounted lift arm can be utilized as a lifting attachment when mounted to derrick trucks and
bucket trucks that have lifting capabilities
• It can be used for changing out poles, cross arms, insulators and mid span lifting requirements
• The lift arm can be mounted to a square, rectangular, round, or oval boom by ordering the proper boom
adapters and blocks
• The boom mounting assembly features a ratchet which allows the arm to be positioned under load
• Total movement of arm is 45°
• Fiberglass arm and mast assembly is 3” O.D. with solid foam core
• Fiberglass brace is 1 1/2” O.D. with solid foam core
• Balanced load limit with brace is 1,000 lbs., unbalanced load limit is 200 lbs. per conductor holder
Note: Rating is based on vertical lift.
• If mast only is used with item 21642 4-way roller or item 12666 4-way roller, the load limit is 500 lbs.
• Several adapters for mast are available to fit existing jibs on material handling bucket trucks. Contact
factory with requirements.
